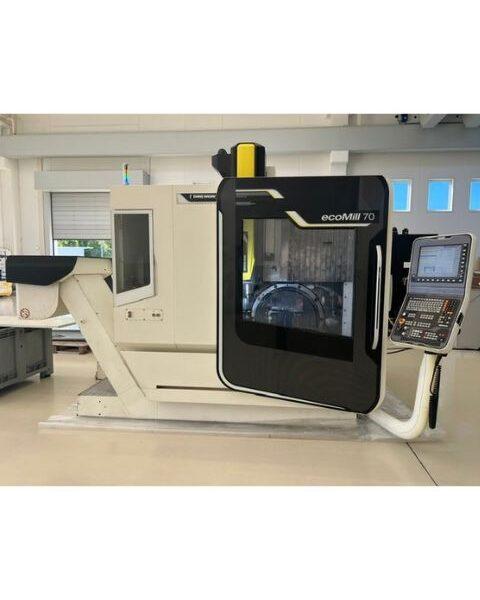

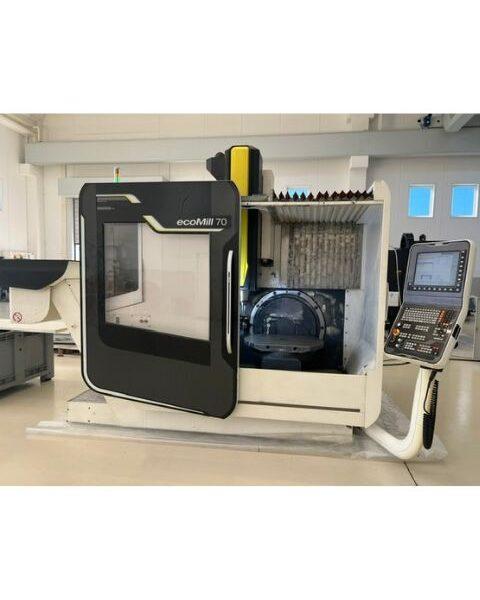

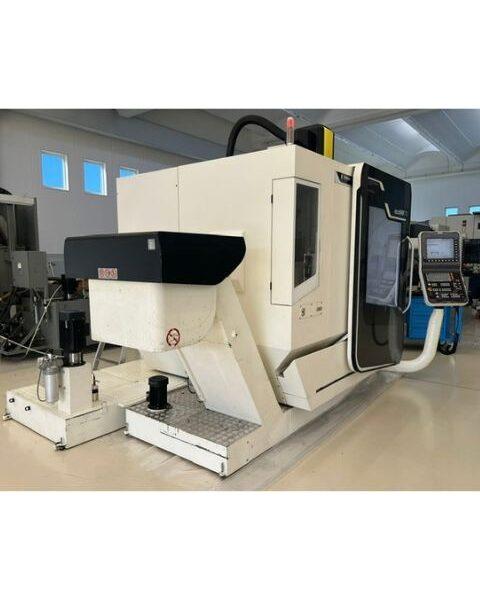

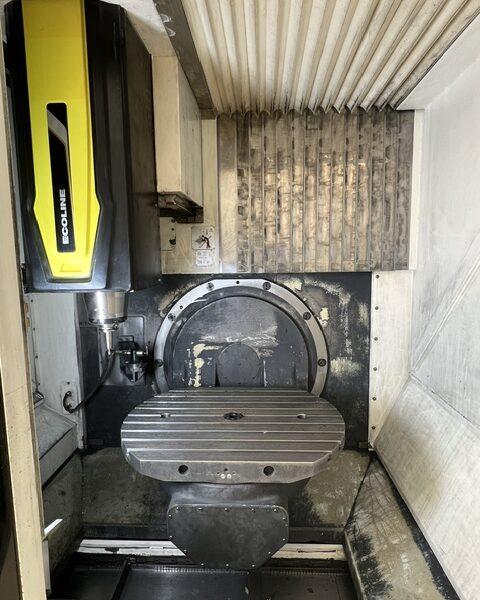

VERTICAL MACHINING CENTER DMG ECOMILL 70

Year 2015

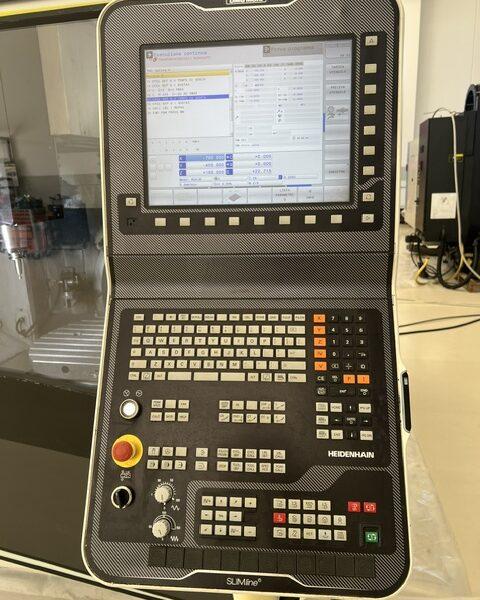

CNC:

Heidenhain TNC620

Travel:

X-Axis
750 mm
Y-Axis
600 mm
Z-Axis
520 mm
Rapid traverse X/Y/Z
30/30/30 m/min

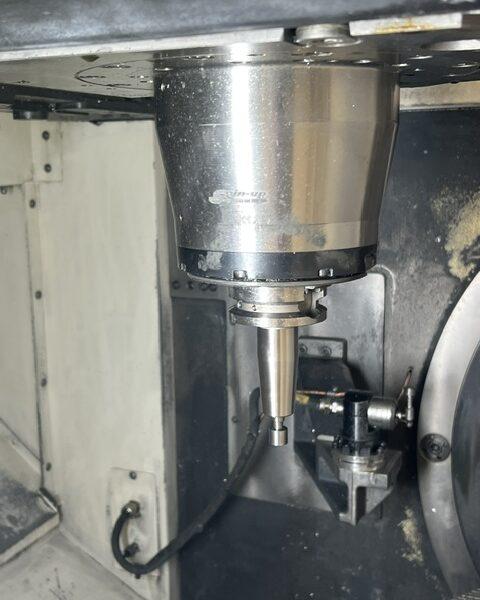

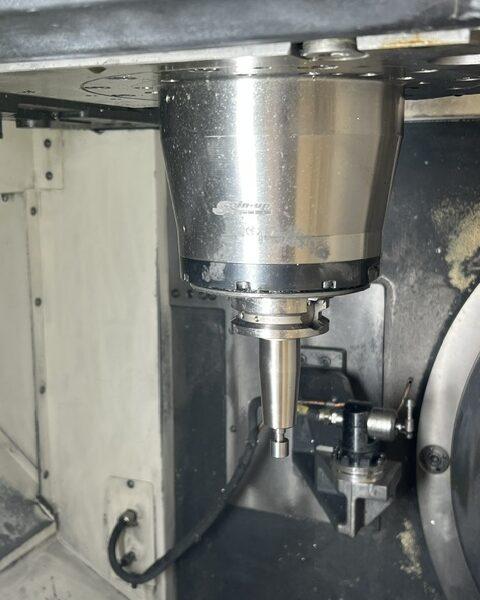

Spindle:

Spindle attachment
ISO40 DIN69871
Maximum speed range
12000 rpm
Power (40/100% ED)
13/9 kW
Torque (40/100% ED)
83/57 Nm

Positioning accuracy:

According to ISD 10791-4 (indirect / direct distance measurement system)
0,016/0,006 mm
According to ISD 10791-4 for B and C axes (direct distance measurement system)
16 arcseconds

Table configuration:

Workpiece mounting surface with T-slots
diam. 800x620 mm
Loading height (upper table edge)
840 mm
Table load (total weight)
350 kg

B/C axis:

B axis swivel range
-10/+95 gradi
Loading height (upper table edge)
840 mm
Table load (total weight)
350 kg

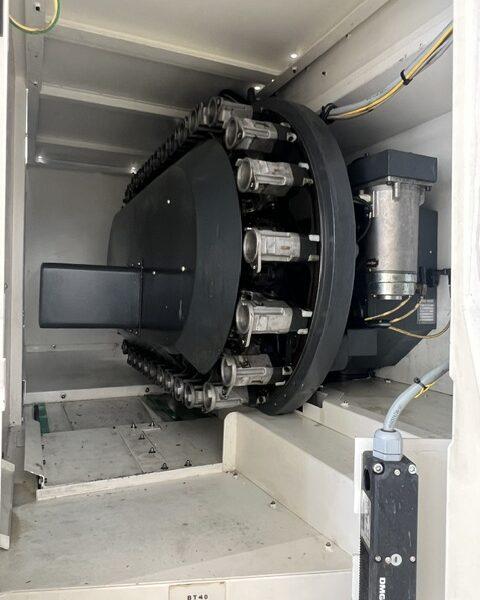

Tool magazine/changer:

Number of tools
30
Maximum tool weight
8 kg
Maximum tool length
300 mm
Maximum tool diameter
80 mm
Maximum tool diameter for vacant adjacent stations
130 mm
Tool change time without ATC shutter
2,7 secondi
Chip-to-chip time without ATC shutter
2,7 secondi

Accessories:

Chip conveyor
Spin window
High pressure pump
20 bar

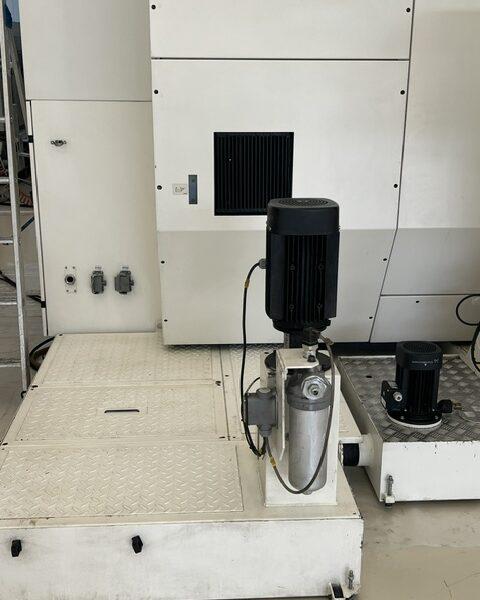

Paper belt filter tank
600 l
Aspirator
Internal light
Optical lines

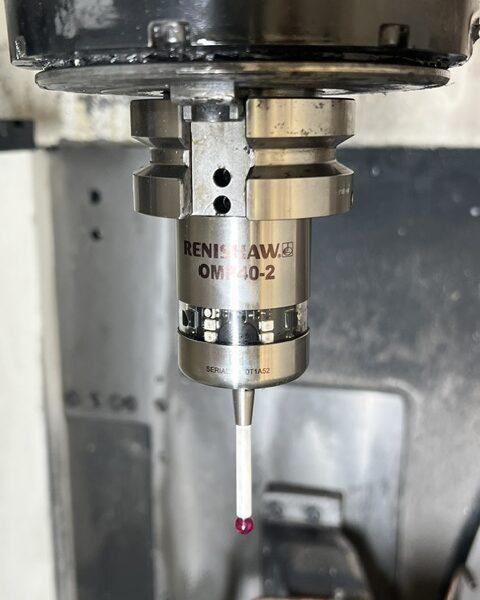

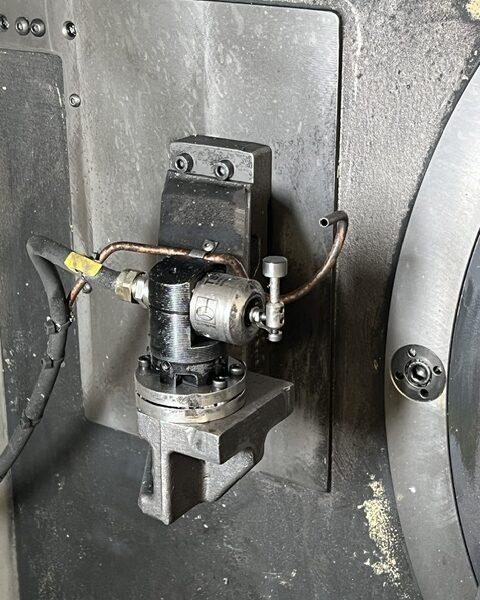

Infrared probe
3D Quick Set
Electronic handwheel

Space requirements with chip conveyor:

5630 x 5300
mm
Weight
7500 kg
